The OW70L-Dac is the first reference user terminal that is able to utilize the Eutelsat OneWeb Low Earth Orbit (LEO) satellite constellation. The OW70L-Dac is a 73 cm dual parabolic 12 dB/K antenna with 3 axis stabilization platform allowing seamless and undisrupted connectivity for LEO handovers.

The technology behind our first LEO dual parabolic antennas integrates complex satellite communications technology into a simple UT specifically designed to meet the needs of many different sectors including small, medium, and large enterprises. The OW70L is small and affordable compared with VSAT but with enhanced performance, it is able to provide fast speed, low latency, and high-capacity connectivity.

OW70L
Technical Spesification
  • Radome Height :77.0 cm / 30.3”
  • Radome Diameter :84.5 cm / 33.3”
  • Reflector Diameter :73.0 cm / 28.7”
  • Weight (Primary Antenna) :33.0 kg / 72.8 Ibs
  • Weight (Secondary Antenna):32.0 kg / 70.5 Ibs
  • Azimuth Range :-300° to +300°
  • Azimuth Range :-300° to +300°
  • Elevation Range :-59° to 59°
  • Tx Frequency & Gain :14.0 ~ 14.5 GHz & 38.4 dBi
  • Rx Frequency & Gain :10.7 ~ 12.7 GHz & 36.0 dBi
  • Polarization :Circular (Tx: LHCP, Rx: RHCP)

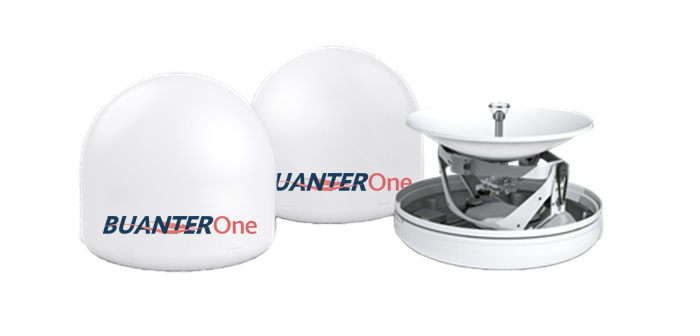

Image UT
Image UT

Features

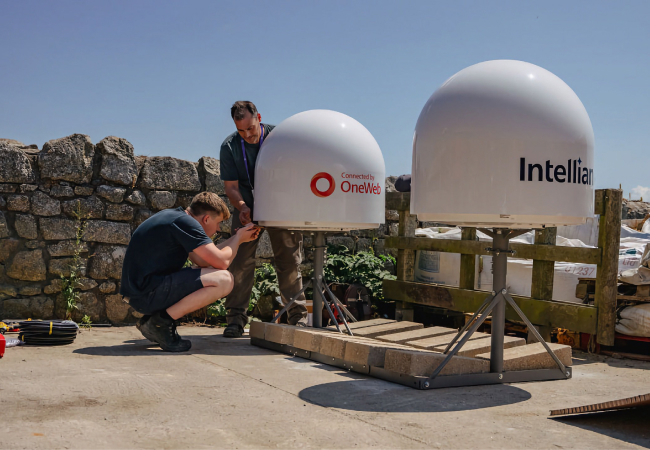

Ease Of Deployment
Ease Of Deployment

Designed with cost-effectiveness in mind, the OW70L is light in weight while it is packed specifically to allow ease of access. With only a single cable needed to provide data and power between indoor and outdoor units install time is significantly reduced.

Seamless, Undisrupted Connectivity
Seamless, Undisrupted Connectivity

The OW70L consists of a Primary-Secondary dual dome solution for consistent connection with LEO satellite handovers. The proven tracking performance can be achieved by precise technology which makes the secondary antenna track a rising satellite before the primary antenna loses a falling satellite. Also “Keyhole problem” avoidance design is implemented in the OW70L-Dac which enables the antenna to continue tracking normally even when the satellite is directly overhead.

Low-Temperature Performance
Low-Temperature Performance

Using an elaborately designed heating device module, the OW70L ensures steady performance in extremely low temperatures, -40 degrees Celsius. Eutelsat OneWeb is the only LEO constellation committing to 100% coverage and the OW70L will ensure that people all over Indonesia have access to affordable and reliable broadband services.
